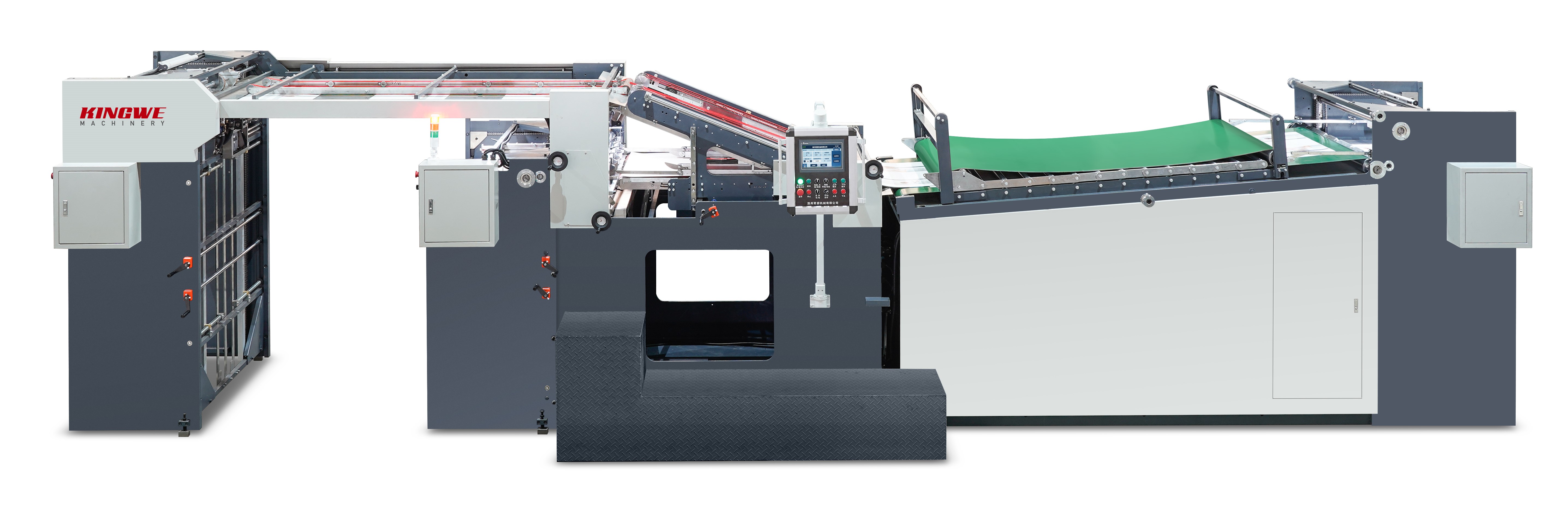

This machine adopts a unique motion tracking positioning system to accurately position the two sheets in the process of feeding. It is used for gluing and laminating of cardboard, coated paper, gray board paper, etc., with high lamination precision. It is suitable for the processing of wine boxes, hang tags, toy puzzles, gift boxes, etc.
The original dynamic homing system makes use of the speed difference between the conveying speed and the stopper, and pushes the paper to the front stopper, and the side is synchronously positioned with the side stopper, so that the two sheets can be accurately positioned during the process. Transmission system: planetary transmission system, power transmission is evenly distributed. The whole machine adopts timing belt transmission, which is maintenance-free, low noise and high efficiency.
Front sucker feeder, no adjustment required for size conversion and easy operation.
Shaking type collecting mechanism: It can loosen the overlapped products first and then push them neatly to ensure a neat and smooth collecting. E-type supporting board and high-speed lifting device can quickly and easily pull out the finished products and increase work efficiency.
With the E-shaped double notch design, the paper to be pasted can be pushed into the pallet for use, and the paper replenishment is convenient and quick.
The rotation speed and the length of the pressing paper are electrically adjusted, and the conversion is convenient.
Under the control of the gluing wheels and adjusting wheel on the high-precision coating mechanism, the minimum coating amount can be adjusted to about 0.08mm. Automatic liquid level control: It can precisely adjust the coating amount according to the paper demand to ensure uniform coating.
Convenient paper separator: It can immediately separate the paper from the gluing wheel, which is also convenient for disassembly, cleaning and adjustment. Gluing wheel side stopper mechanism: the exquisite wheel side stopper can scrape the glue on the side of the wheel back into the wheel, so that the high-speed running wheel side will not overflow with glue, and it can also adjust the rapid return of the glue to achieve the purpose of recycling.
The PLC computer control system is adopted, which can monitor and display the running status of the machine in real time.
Technical Specifications
Model
JW-1207
JW-1210
Maximum paper size mm
1200 x 720
1200 x 1000
Minimum paper size mm
450 x 400
450 x 400
Surface paper thickness g/m²
100-1000
100-1000
Bottom paper thickness g/m²
180-1800
180-1800
Maximum speed pcs/min
150 (depending on paper)
105 (depending on paper)
Fitting accuracy mm
±0.5 (depending on paper)
±0.5 (depending on paper)
Power Kw
1 5
15
Machine weight Kg
7000
7000
Operating space m
3×12
3×12
Dimensions mm
9000 x 2100 x 2200
9000 x 2100 x 2200
