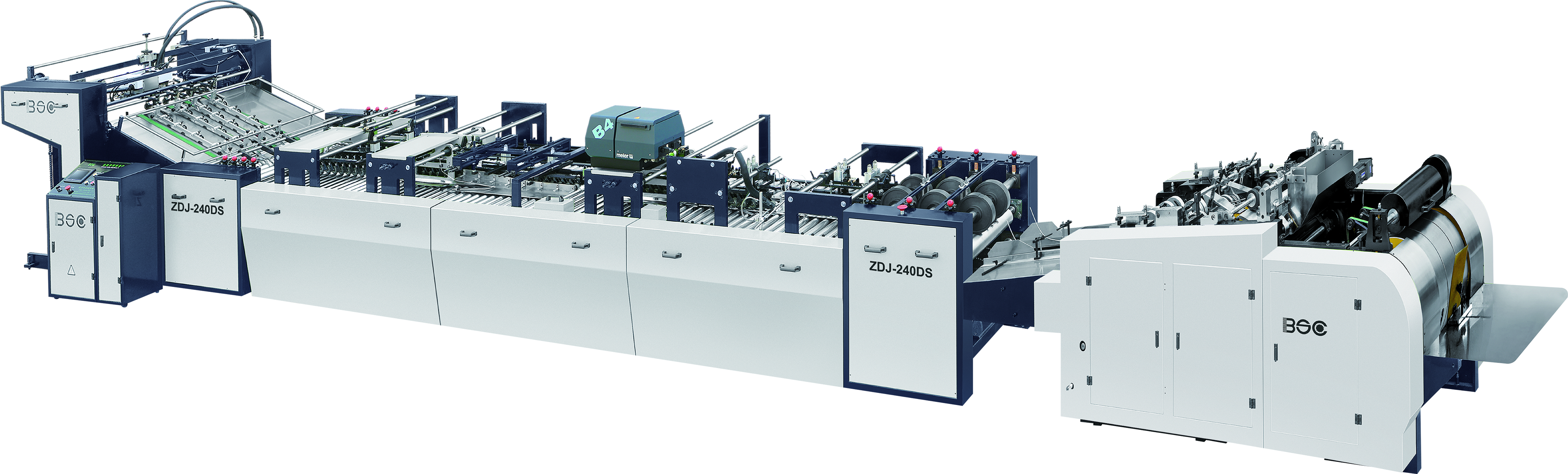

Sheet-fed Mini Paper Bag Making Machine
Sheet-fed Mini Paper Bag Making Machine

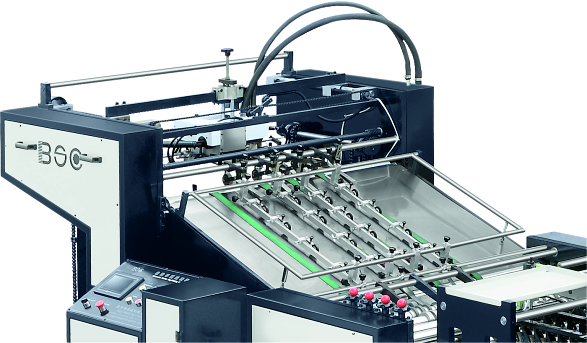

BSC Serial ZDJ-240DS Model fully automatic sheet-feeding paper bag making machine adopts mechanical, electricity, light, gas integration technology is, combine a number of its proprietary technology, uses the paper as raw material canle finish: paper feeding positioning, die-cutting tube forming, gusset forming bottom opening and bottom gluing automatic, Seamless viscose(hot melt adhesive), then compaction output adopt the PLC programmable control frequency control technology to realize the integral multidimensional control, more centralized control and single point remote control operating.
| Size L*W*H | 13800mm*2200mm*1800mm | Weight | 9T |
| Min. Paper Sheet Size | 210mm*325mm | Power | 12kw |
| Max. Paper Sheet Size | 410mm*750mm | Gusset | 40mm – 140mm |
| Bag Width | 100mm – 240mm | Paper Weight | 80g-190g |
| Bag Height | Speed | 50-110pcs/min | |
| Folding | 25mm – 60mm | Glue | Cold & hot |
| NO | Item Name | Brand | Origin |
| 1 | Machine body | BSC | China |
| 2 | Vacuum pump | ORION | Japan |
| 3 | Paper feeding system | BSC | China |
| 4 | Main motor | Ruiyu | China |
| 5 | Main bearing | NSK | Japan |
| 6 | Electric element | Siemens | Germany |
| 7 | Inverter | Panasonic | Japan |
| 8 | Glue system | BUEHNEN | Germany |
| Name | Size | Download |
|---|---|---|
| ZDJ-240DS.pdf | 228 KB | Download |
