Paper Rope Rewinding Machine

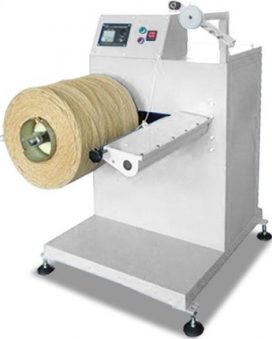

400M paper rope rewinding machine

This machine mainly supports the paper rope machine. Through the high-speed spinning of the axes of the machine, it rewinds the paper rope roll which was made by paper rope machine to enlarge the diameter and inner diameter of the final paper rope roll, and it also can avoid the knot of the original paper rope roll. So the machine can enhance the productivity and improve the quality.

Core Diameter of Raw Rope Roll 76 mm
Core Diameter of Final Rope Roll 180 mm
Final Rope Reel Diameter 400-600mm
Max. Production Speed 80-150M/min
Power Requirements 380V
Total Power 1.5kw
Total Weight Approx.150KG
Overall Dimension L1050mm×W800mm×H1200mm



Name Size Download
400M-paper-rope-rewinding-machine.pdf 190 KB Download
