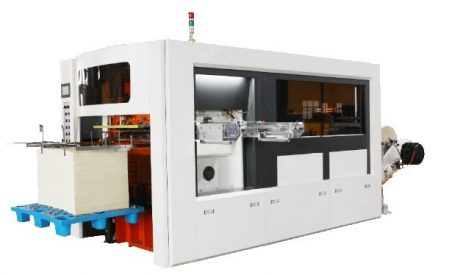

PY-950/1200 High Speed Roll Die Cutting & Creasing & Embossing Machine

PY-950/1200 is an ideal and professional machine in die-cutting,creasing,embossing and full-stripping various PE coated paper, normal paper, corrugating paper and plastic material.

PY-950/1200 High Speed Roll Die Cutting & Creasing & Embossing Machine

PY-950/1200 is an ideal and professional machine in die-cutting,creasing,embossing and full-stripping various PE coated paper, normal paper, corrugating paper and plastic material. It applies to paper cup, paper box, medical package, wine package, food package and other environmental protection products. It adopts micro-computer, HMI, servo positioning, alternating current frequency converter, automatic counting, photoelectric rectifying, and pneumatic lock cutting plate, electromagnetic clutch, centralized oil lubrication, overload protection and distinctive gearing. All of these is the guarantee of steady pressure, precise positioning, smooth running, safety and reliability operation.

Main Feature:

  1. The working speed is 150-200times per minute,the level of the capacity in China is 120times per minute. It has the ability to die-cutting, creasing and embossing for various shapes.
  2. Paper conveyed by servo motor to ensures steady and accurate conveying. photoelectricity sensor checks the color code of printing to ensure fix the paper position accurately.
  3. Electric control system uses PLC and HMI. Equipped with safety refinements to make acoustic – optical alarming and auto stop when some faults.
  4. Worm wheel and worm transmission system ensures the powerful and steady pressure;It is very convenient and accurate to adjust pressure through HMI.
  5. Lubricating with oil circulation and alarming when lack of oil to ensure smooth running and prolong the machine life.
  6. The die-cutting frame uses pneumatic locking system to convenient operation. Die-cutting down steel board from Taiwan is accurate and lasts forever.
  7. It adapts electric control pneumatic clutch to protect the machine when start and emergency stop..The flywheel provides a mounting location to the clutch and also can increase the pressure.



Advantage and improvement:

  • Machine Host. New design: Worm and Worm wheel together with crankshaft same as the sheet die-cutting machine. The previous design: off-center shaft.
  • Pressure Adjusted. New design: The pressure is automatic adjusted through the motor to control the four feet by HMI. And the pressure can be shown in the HMI. It is very convenient and accurate. The previous design: manual adjusted through gear wheel or the screw.
  • Positioning block in movable platform we add one more positioning block in movable platform. It makes the pressure of the platform more stable, and endurable.
  • Oil circuit. New design: The outside oil circuit adds a filter to clear the oil and a flow switch to monitor lacking oil. The previous oil circuit is crude and confused. (the first machinery equips with alarming of oil lacked)
Type PY-950 PY-1200
Paper Convey Width: 950mm-400mm 1200mm-400mm
Max Roll paper diameter 1800mm
Cut Precision: ± 0.10mm
Production capacity 150-200 times/min
Maximum cutting size: 950 x540mm 1200 x640mm
Suitable Material: 100-800g/m2 white cardboard, PE coated paper, Kraft paper.etc
Maximum Pressure: 350T
Power: 14.5KW
Total Weight: 6.3T(standard) 8.4 T(standard)
Overall Dimension: 4200 x 2100 x 1850 mm
Working Air Source: Air pressure: 0.6Mpa;
Working air: 0.3m³/min;
other size can be customized.
