Automatic Paper Carton Erecting Forming Machine D800 & D1200

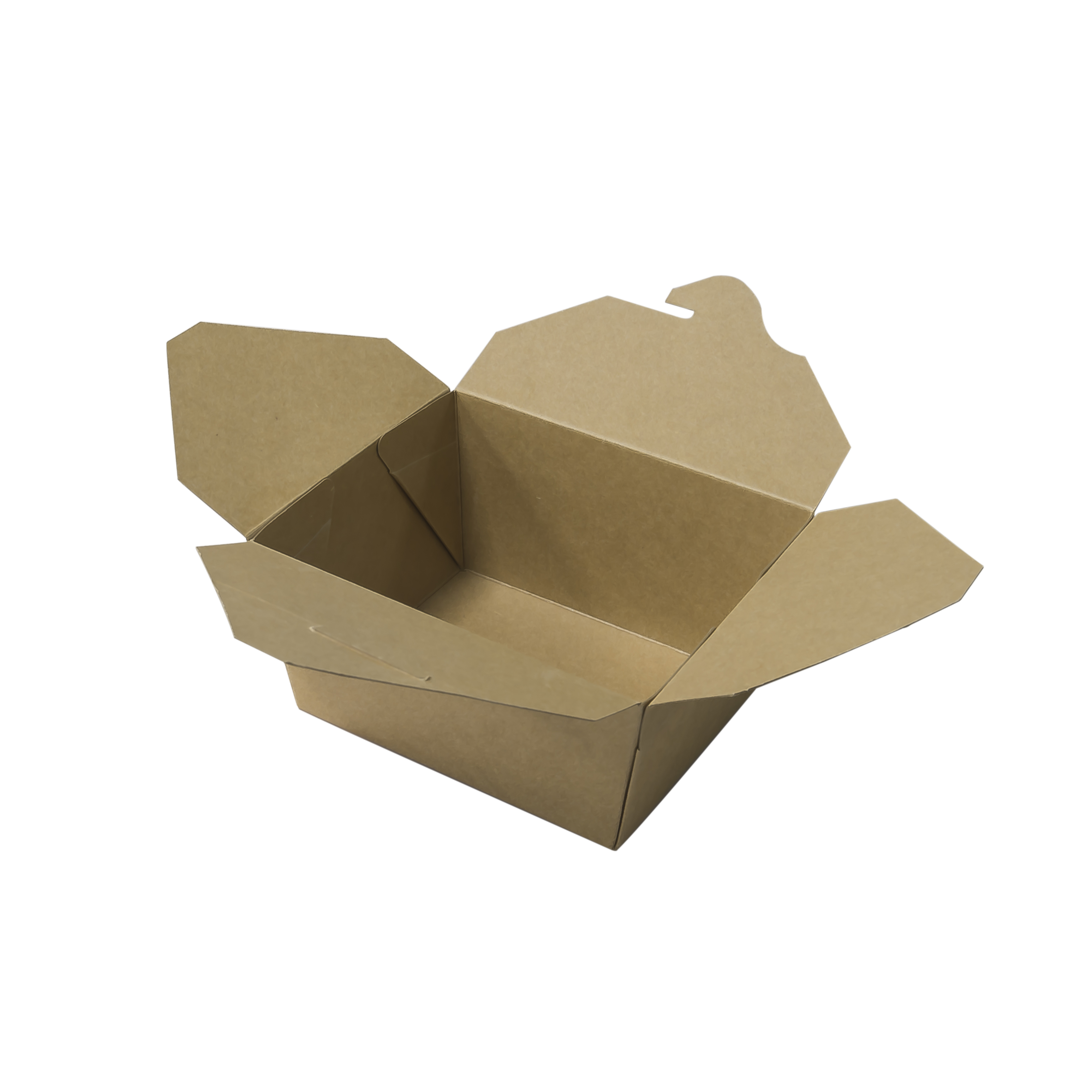

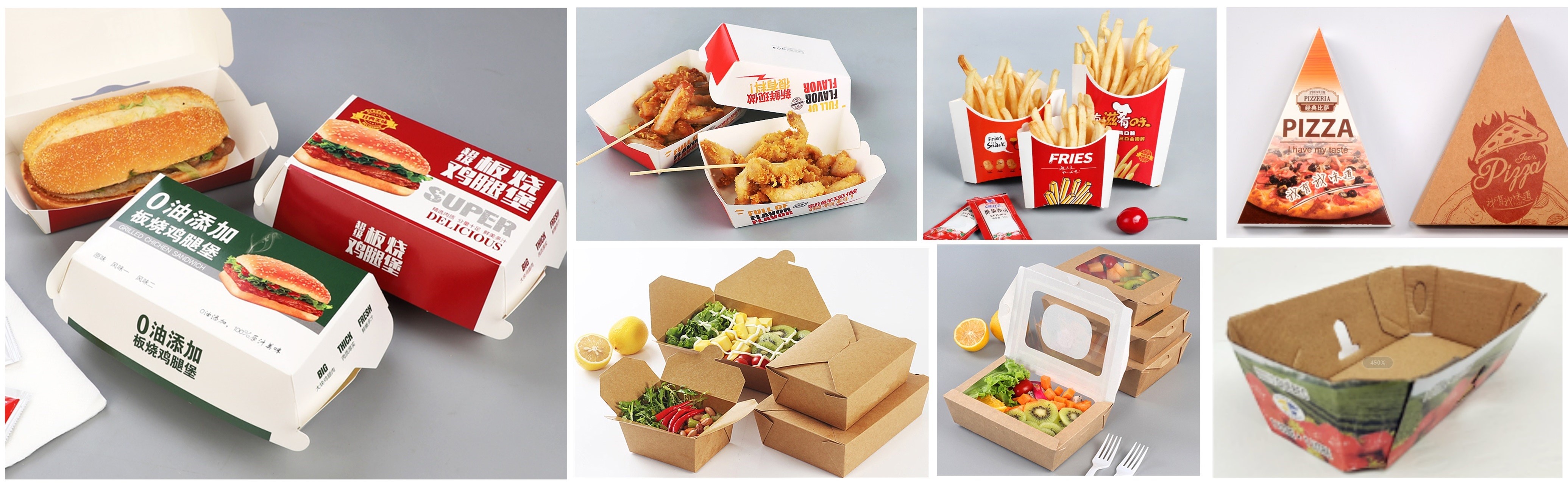

Is an ideal choice to produce hamburger boxes, chips boxes, take away box, etc.

Automatic Paper Carton Erecting Forming Machine

Is an ideal choice to produce hamburger boxes, chips boxes, take away box, etc. It adopts micro-computer, PLC, servo feeding, alternating current frequency converter ,the vacuum-sucking, auto gluing, automatic paper tape counting, chain drive. All of these main parts and electric control system adopts famous brand to guarantee steady working, precise positioning, smooth running, safety and reliability operation

1. It can make more than 10 types boxes. If the box is not in blow list, please show us your sample.
2. No need the adjust the distance or change different size cam to control feeding . It save the time and more precision when change the mold.
3. Sensor detection to control start and stop feeding and more width belt will replace the up down part. Feeding will be much more steady.

Type D800 D1200
Production capacity: 40-180 pcs/min 80-320pcs/min
Suitable Material: 200-600gsm  card paper,PE coated paper, kraft paper, corrugated paper
Paper open length: L100-450mm,degree:5°-40°
Paper open width: B100-600mm

Height H15-200mm

B100-400mm

Height H15-200mm

Total Power: 5KW 6.25KW
Weight: 1.7T 2.4T
Dimension: 3600 x1400 x 1700 mm 3600 x 1850 x 1700 mm
power source 380V 50HZ
