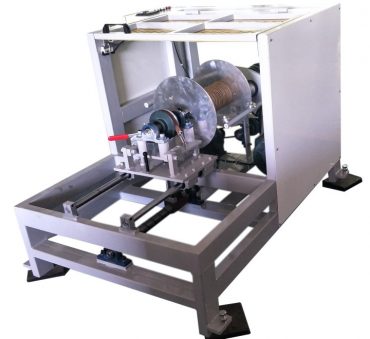

High Speed Paper Rope Machine
High Speed Paper Rope Machine
This machine mainly support high speed paper handle machine and paper bag machine. It can make paper rope in a high speed and provide paper rope for paper handle machine. The machine uses narrow web as raw material, through the high speed spinning of the axes of the machine,paper twisted into rope and kept in paper rope roll.Users can adjust the diameter of the paper rope to meet different production needs. We can also upgrade the machine to make it can make two roll paper rope at the same time according to the customers’ need which can improve the production efficiency.
| Paper Roll Core Diameter | Φ76 mm(3”) |
| Max.Paper Roll Diameter | 400mm |
| Paper Roll Width | 20-100mm |
| Paper Thickness | 22-60g/㎡ |
| Paper Rope Diameter | Φ2.5-6mm |
| Rope Roll Core Diameter | Φ76 mm(3”) |
| Max.Rope Roll Diameter | 300mm |
| Max. Rope Roll Width | 300mm |
| Production Speed | 15-20m/min |
| Power Requirements | 220V |
| Total Power | 1.1KW |
| Total Weight | Approx.200KG |
| Overall Dimension | L1580*W1150*H930mm |
| Name | Size | Download |
|---|---|---|
| 10M-High-Speed-Paper-Rope-Machine.pdf | 146 KB | Download |
